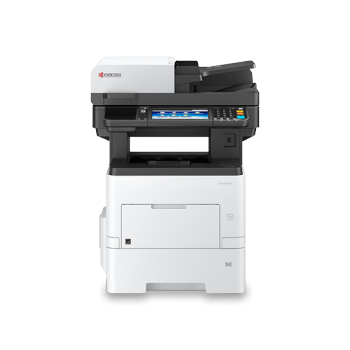

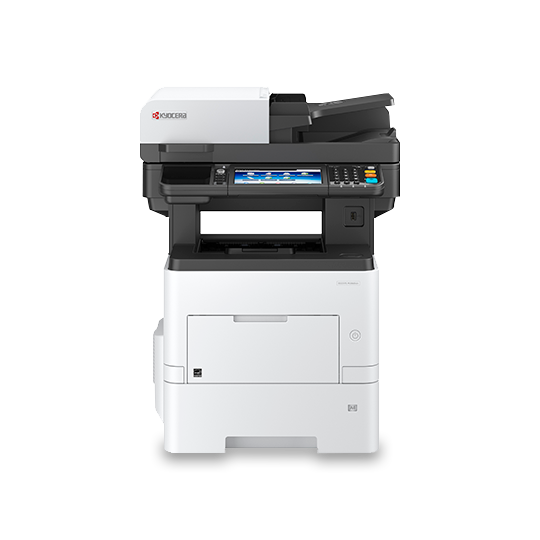

ECOSYS M3860idn

The ECOSYS M3860idn b&w copy, color scan and fax solution with speeds up to 62 ppm, is the product of choice for small-medium sized businesses and workgroups.

High speeds up to 62 ppm b&w

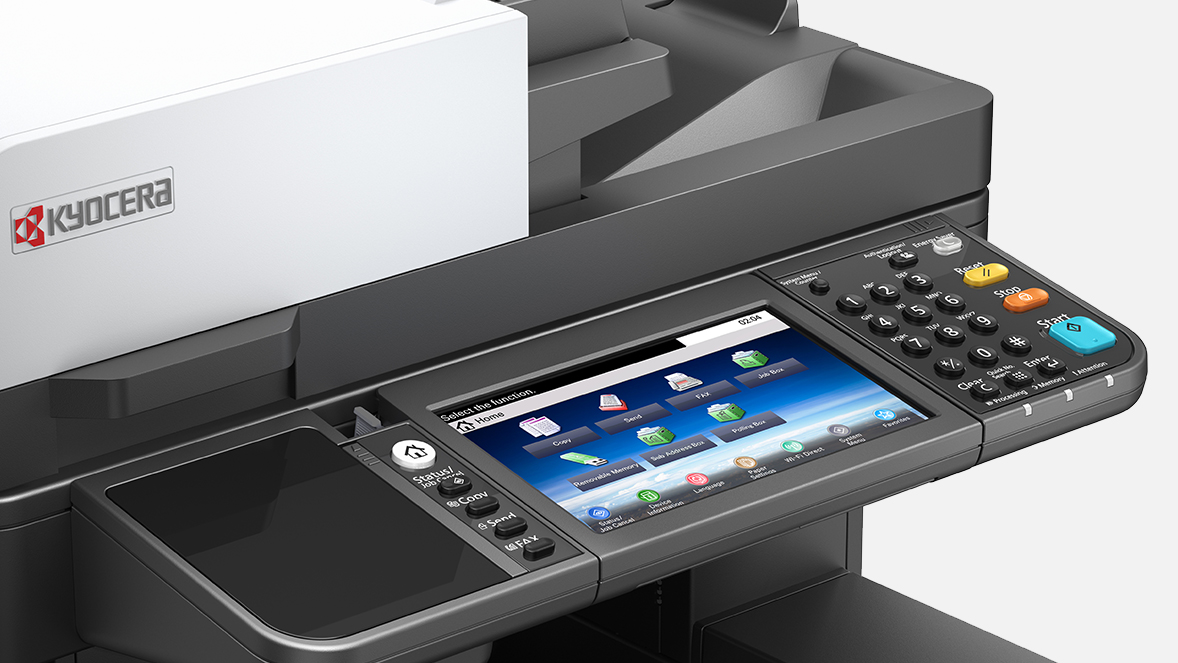

7" color TSI - intuitive user interface
Data Security Kit - Free Activation
Optional wireless, Wi-Fi Direct
Standard HyPAS capable

Engine speed

62 ppm b&w

Resolution

600 x 600 dpi, Up To Fine 1200 dpi

Scan speed

Up to 62 ipm simplex / 122 ipm duplex

Time to first print

4.5 sec. b&w

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Multifunctional products for day-to-day tasks

Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant color, to match the needs of any business.

Multifunctional products for day-to-day tasks

Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.
Powerful, reliable, and economical

Whether on your desktop or on the floor of your office – be it in color or
black and white, with Kyocera, you always achieve the best possible print
quality while easily controlling your output costs. Kyocera devices and
their components have been designed to be extremely reliable and highly
economical.

Powerful, reliable, and economical

For an MFP that can be trusted to produce the goods whenever required.
ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs, and significantly less waste during their lifetime.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly MFPs and printers at an economical cost.

Downloads

ECOSYS M3860idn Drivers
ECOSYS M3860idn Documentation
ECOSYS M3860idn Software

Main Specifications

General

General
Paper handling
Print
Copy
Scan
Fax

General type

A4 B&W MFP (up to 8.5" x 14")

Engine speed

62 ppm b&w

Warm-up time

25 sec. or less

Power consumption

Printing/Copying: 120V: 800/824 W; 220-240V: 723/746 W; Ready: 56W, Sleep: 0.5W

Input capacity

Single 500 sheet tray, 100 sheet MPT

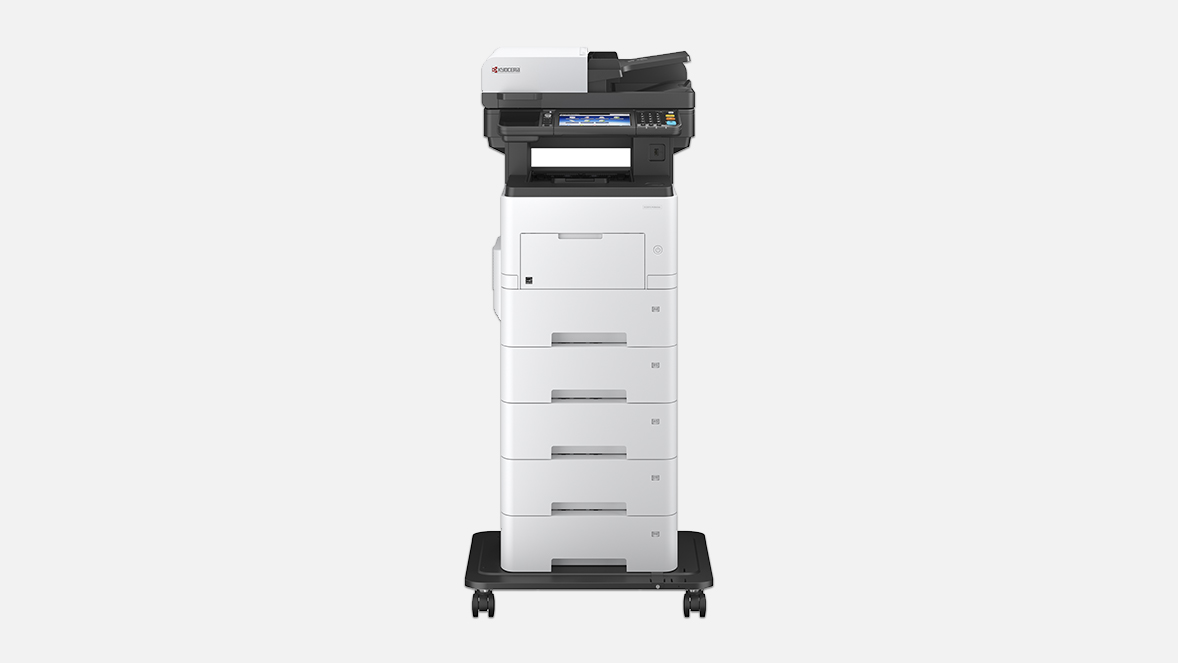

Max. input capacity with options

2,600 sheets

Duplex unit

Standard stackless duplex supports statement (5.5" x 8.5") to legal (8.5" x 14"), 16 lb Bond - 90 lb Index (60 - 120gsm)

Max. output capacity

Standard output tray 500 sheets

Document processor

Standard Dual Scan Document Processor: 100 sheets

Processor

ARM Cortex-A9 1,200MHz

Fonts

93 Fonts PCL 6/KPDL3, 8 Fonts Windows/Vista, 1 Bitmap

Applicable OS

Windows Server 2003, Windows, Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10; Linux, Apple Macintosh OS X 10.5 or Later

Max. original size

8.5" x 14"

Continuous copy

1-999

Zoom range

25 - 400% in 1% Step Increments

Preset magnification ratios

Full Size, 7 Reduction, 5 Enlargement Preset Ratios

Digital copy features

Auto Color Select (ACS), Auto Zoom, Auto Duplex, Blank Page Skip, Continuous Scan

Scan functionalities

Scan to Folder SMB, Scan to Email, Scan to FTP, WSD-SCAN Send, Scan to USB, TWAIN/WIA

Scan speed

Up to 62 ipm simplex / 122 ipm duplex

Scan resolution

Fine 1200 dpi, 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi

Max. scan size

8.5" x 14"

File type

TIFF (Compressed MMR/JPEG), PDF (CompressedMMR/JPEG), XPS, JPEG, PDF (Highly Compressed), PDF/A

Compatibility

G3 Fax

Modem speed

33.6 Kbps

Max. original size

8.5" x 14"

Fax features

Duplex Transmission/Reception, Density Adjustment, Original Image Quality, Continuous Scan, Zoom In/Out, Timer Send, Direct Send, Polling Receive, Mixed Originals (Same Width)

Options and Consumables

Paper Handling Options

Paper Handling Options
Consumables
Options

TK-3192
Black Toner (Yield: 25K @ ISO 19752)

TK-3202
High Capacity Black Toner (Yield: 40K @ ISO 19752)

CA-3100
Caster kit

Card Authentication Kit (B)
Support for various proximity card readers

Card Reader Holder 10
Tray for proximity card reader

Data Security Kit (E)
Kit for hard drive encryption and overwrite

HD-6
SSD memory device (32 GB)

HD-7
SSD memory device (128 GB)

IB-36
Wireless LAN NIC - 98' range and Wi-Fi Direct support

IB-50
Gigabit ethernet board for dual NIC

IB-51
Wireless LAN NIC - 328' Range

MS-5100B
Manual stapler

PCL Barcode Flash 3.0
PCL Barcode Flash Type D/E

PT-320
250 sheet face-up rear output tray

SD-144-1GB (DDR3)
1GB DDR3 Memory DIMM

SD-144-2GB (DDR3)
Printer DIMM memory (2 GB)

SDHC Card-16G
SD Card Memory for storage, 16GB

SDHC Card-32G
SD Card Memory for storage, 32GB

SH-13
Staple cartridge

Scan Extension Kit (A)
Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx)

Stand
Copier cabinet stand

UG-33
Thin Print support
