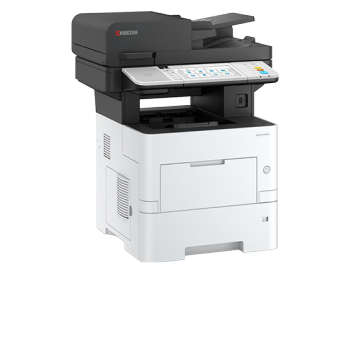

    ECOSYS MA5500ifx

    At 57 pages per minute, the MA5500ifx combines optimum productivity with the latest security enhancements to efficiently meet the needs of the most demanding organizations.

    • Supports standard Print, Copy, Scan and Fax
    • Versatile 100-sheet Dual Scan Document Processor
    • High resolution printing up to Fine 1200 dpi
    • Supports the latest enhanced security capabilities
    Engine speed
    Engine speed

    57 ppm b&w

    Resolution
    Resolution

    600 x 600 dpi, Up To Fine 1200 dpi

    Scan speed
    Scan speed

    Simplex BW/Color: @200 dpi: 62ipm/47ipm; @ 300 dpi: 62ipm/42ipm; @600 dpi: 42ipm/22ipm; Duplex (DSDP) BW/Color: @200 dpi: 122ipm/92ipm; @300 dpi: 122ipm/82ipm; @600 dpi: 64ipm/34ipm

    Time to first print
    Time to first print

    4.5 sec. b&w

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • Multifunctional products for day-to-day tasks

      Multifunctional products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant color, to match the needs of any business.

      Multifunctional products for day-to-day tasks

      Multifunctional products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • Powerful, reliable, and economical

      Powerful, reliable, and economical

      Whether on your desktop or on the floor of your office – be it in color or black and white, with Kyocera, you always achieve the best possible print quality while easily controlling your output costs. Kyocera devices and their components have been designed to be extremely reliable and highly economical.

      Powerful, reliable, and economical

      Powerful, reliable, and economical

      For an MFP that can be trusted to produce the goods whenever required.

    • ECOSYS: The sustainable solution

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs, and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution

      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly MFPs and printers at an economical cost.

    Resources

    Explore some of the common functions, features and questions via short videos and more.

    • Video Library

      Video Library

      Watch short educational videos that will help walk you through the features and functionalities.

    • Frequently Asked Questions

      Frequently Asked Questions

      Answers to common troubleshooting situations and installation instructions for related software.

    Downloads

    • ECOSYS MA5500ifx Drivers
    • ECOSYS MA5500ifx Documentation
    • ECOSYS MA5500ifx Software

    Main Specifications

    General
    • General
    • Paper handling
    • Print
    • Copy
    • Scan
    • Fax
    square-540x540-MFP_MA5500ifx
    General type
    A4 MFP (up to 8.5" x 14")
    Engine speed
    57 ppm b&w
    Warm-up time
    25 sec. or less
    Power consumption
    Printing: 120V: 713.5W; 220 – 240V: 719W; Ready: 56.4W, Sleep: 0.6W
    Input capacity
    Single 500 sheet tray, 100 sheet MPT
    Max. input capacity with options
    2,600 sheets
    Duplex unit
    Standard stackless duplex supports statement (5.5" x 8.5") to legal (8.5" x 14"), 16 lb Bond - 90 lb Index (60 - 120gsm)
    Max. output capacity
    Standard output tray 500 Sheets Face Down; 250 Sheets Face Up
    Document processor
    Standard Dual Scan Document Processor: 100 sheets
    Processor
    ARM Cortex-A53 Dual core 1.4GHz
    Fonts
    Outline Fonts 93 (PCL 6/KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), Bitmap (1 Font / 79 Processed Outline Fonts)
    Applicable OS
    Windows Server 2012,Windows Server 2012R, Windows 8.1, Windows 10; Linux; Mac OS X 10.5 or later
    Max. original size
    8.5" x 14"
    Continuous copy
    1-999
    Zoom range
    25 - 400% in 1% Step Increments
    Preset magnification ratios
    Full Size, 7 Reduction, 5 Enlargement Preset Ratios
    Digital copy features
    Auto Duplex, Continuous Scan, Blank Page Skip, Line Skip Copy, ID Card Copy
    Scan functionalities
    USB, TWAIN, WIA, WSD, PC Send (SMB/FTP), E-mail, Continuous Scan, Mixed Originals
    Scan speed
    Simplex BW/Color: @200 dpi: 62ipm/47ipm; @ 300 dpi: 62ipm/42ipm; @600 dpi: 42ipm/22ipm; Duplex (DSDP) BW/Color: @200 dpi: 122ipm/92ipm; @300 dpi: 122ipm/82ipm; @600 dpi: 64ipm/34ipm
    Scan resolution
    600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 200 x 400 dpi, 200 x 100 dpi
    Max. scan size
    8.5" x 14"
    File type
    TIFF/PDF (MMR/JPEG), XPS, OpenXPS, PDF/A, High Compression PDF; Optional: Searchable PDF and OOXML / OOXML(OCR)
    Compatibility
    G3 Fax
    Modem speed
    33.6 Kbps
    Max. original size
    8.5" x 14"
    Fax features
    Fax Direct Tx, Fax Memory Tx, Scheduled Transmission, Fax Polling Tx/Rx,Subaddress Tx, Subaddress Confidential Rx, Subaddress bulletin board Rx, Forward Fax, Network Fax Tx, Shared Fax Driver

    Options and Consumables

    Paper Handling Options
    • Paper Handling Options
    • Consumables
    • Options

    TK-3432
    Black Toner (Yield: 21K @ ISO 19752)

    MM-20 BULK
    Printer DIMM Memory Bulk (1GB)

    Stand
    Copier cabinet stand

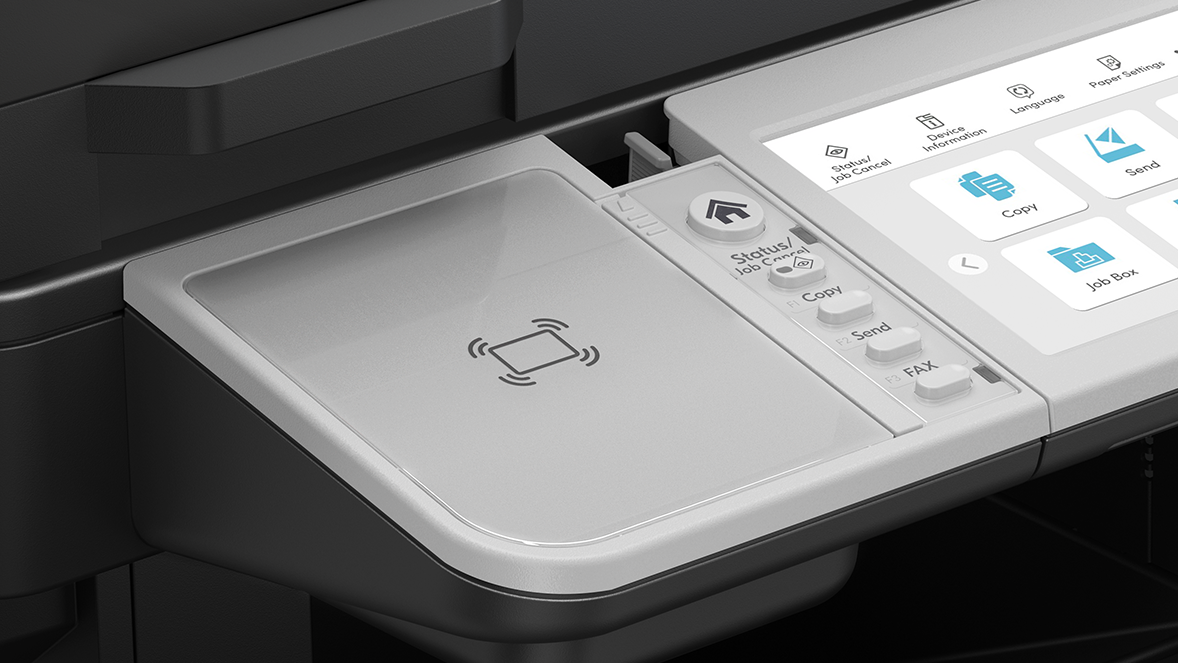

    • media-image-gallery-1178x663_MFP_MA5500ifx-Series_Card-Reader_01

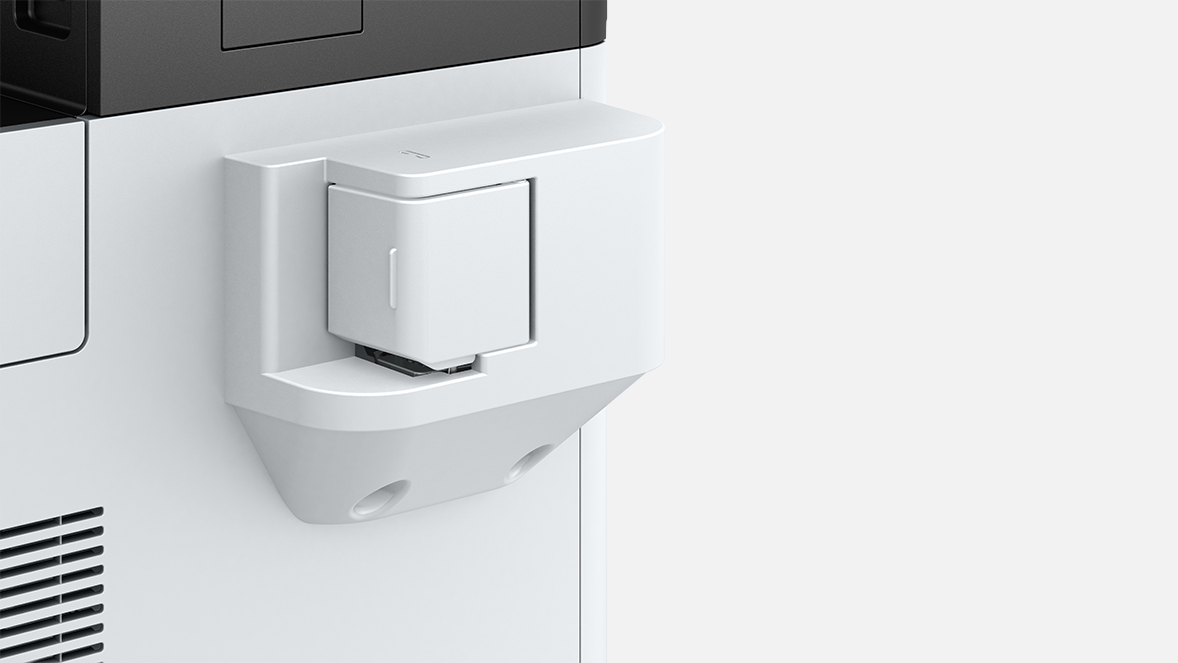

    • media-image-1178x663-MFP_MA5500ifx-Series_MS-5100B_01
    • media-image-1178x663-MFP_MA5500ifx-Series_rear_lock_01

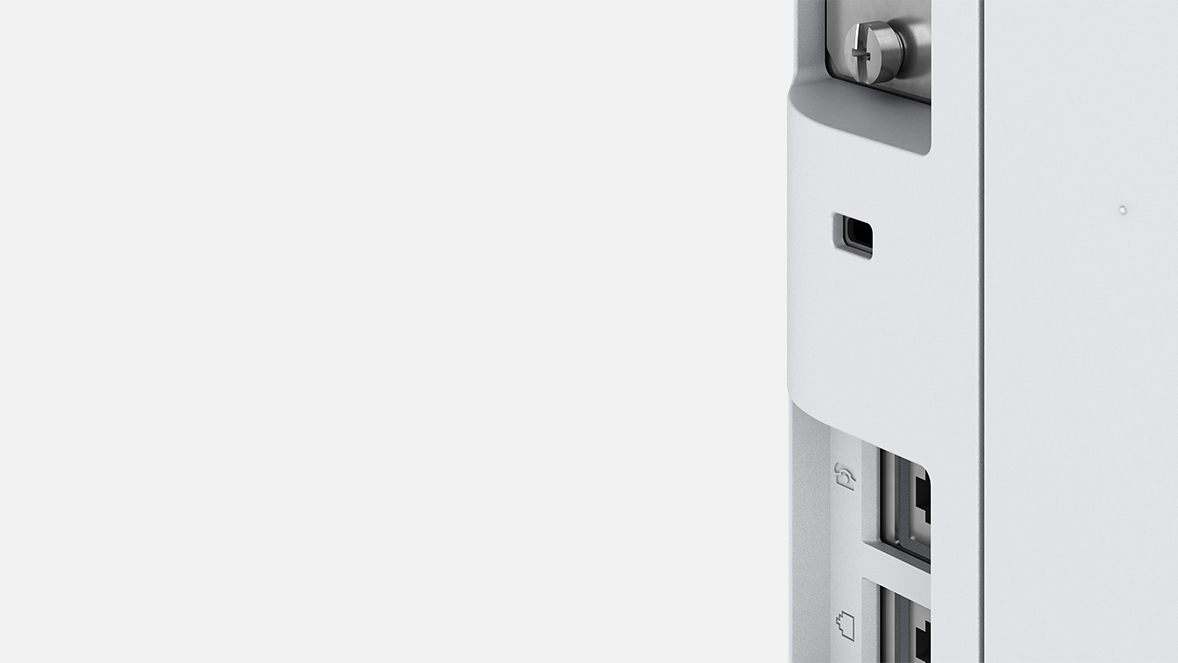

    • media-image-1178x663-MFP_MA5500ifx-Series_rear_unlock_01
    • media-image-1178x663-MFP_MA5500ifx-Series_scan-A6_01

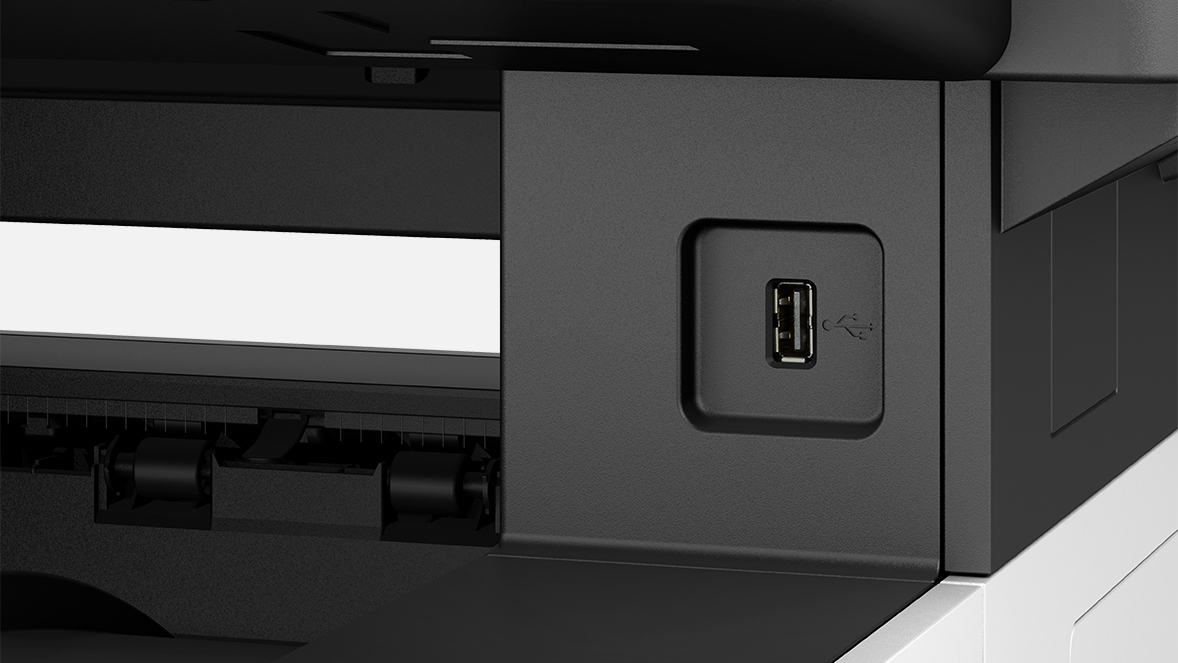

    • media-image-1178x663-MFP_MA5500ifx-Series_USB_01
    • media-image-gallery-1178x663_MFP_MA5500ifx_front_comb01_01

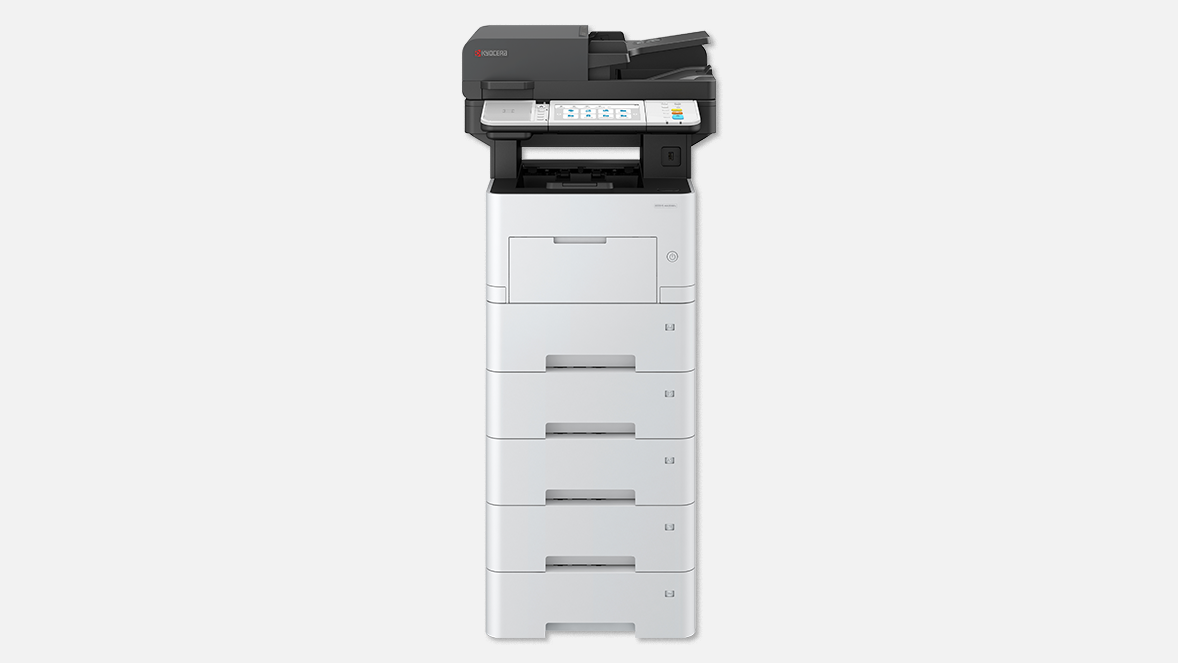

    • media-image-gallery-1178x663_MFP_MA5500ifx_front_comb03_01
