    square-540x540-MFP_PA3500cx

    ECOSYS PA3500cx

    Compact yet powerful, at 37 pages per minute, the ECOSYS PA3500cx speeds through even the toughest jobs with ease providing outstanding image quality to get the job done right.

    • High speeds up to 37 ppm b&w and color
    • Paper capacity up to 2,300 sheets
    • High quality output at 1200 x 1200 dpi
    • Optional Wireless, Wi-Fi Direct
    • Mobile printing compatibilities
    Engine speed
    Engine speed

    37 ppm color

    Resolution
    Resolution

    1200 dpi x 1200 dpi, 9600 dpi x 600 dpi, 600 dpi x 600 dpi

    Dimensions (W x D x H)
    Dimensions (W x D x H)

    15.5" x 20.9" x 15.5"

    Time to first print
    Time to first print

    5.7 sec. b&w; 7.0 sec. color

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • Printing solutions to make a business run smoothly

      Printing solutions to make a business run smoothly

      Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera’s complete portfolio of reliable, high-value, eco-friendly network laser printers, deliver high resolution output with crisp black and white or vibrant color prints, whether they are text or graphics, for any size workgroup.

      Printing solutions to make a business run smoothly

      Printing solutions to make a business run smoothly

      With the introduction of a Kyocera printer, printing can become reliable, quick, and low cost.

    • Powerful, reliable, and economical

      Powerful, reliable, and economical

      Whether on your desktop or on the floor of your office – be it in color or black and white, with Kyocera, you always achieve the best possible print quality while easily controlling your output costs. Kyocera devices and their components have been designed to be extremely reliable and highly economical.

      Powerful, reliable, and economical

      Powerful, reliable, and economical

      For a printer that can be trusted to produce the goods whenever required.

    • ECOSYS: The sustainable solution

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs, and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution

      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly MFPs and printers at an economical cost.

    Resources

    Explore some of the common functions, features and questions via short videos and more.

    • Video Library

      Video Library

      Watch short educational videos that will help walk you through the features and functionalities.

    • Frequently Asked Questions

      Frequently Asked Questions

      Answers to common troubleshooting situations and installation instructions for related software.

    Downloads

    • ECOSYS PA3500cx Drivers
    • ECOSYS PA3500cx Documentation
    • ECOSYS PA3500cx Software

    Main Specifications

    General
    • General
    • Paper handling
    • Print
    square-540x540-MFP_PA3500cx
    General type
    A4 COLOR PRINTER (up to 8.5" x 14")
    Engine speed
    37 ppm color
    Warm-up time
    23 sec. or less
    Power consumption
    Printing: 120V: 541.6W; 220 - 240V: 496.4W; Ready: 120V: 11.1W; 220 - 240V: 11.8W; Sleep: 120V: 0.4W; 220 - 240V: 0.5W
    Input capacity
    Single 550 sheet tray, 100 sheet MPT
    Max. input capacity with options
    2,300 sheets
    Duplex unit
    Standard Stackless, Supports Statement to Legal (5.5" x 8.5" - 8.5" x 14"), 16 lb Bond - 90 lb Index (60 - 163gsm)
    Max. output capacity
    Standard Output Tray 500 Sheets Face Down
    Processor
    ARM Cortex-A9 Dual core 1.2GHz + ARM Cortex-M3 100MHz
    Fonts
    PCL, KPDL, Cambria, Calibri and Bitmap
    Applicable OS
    Windows Server 2012,Windows Server 2012R, Windows 8.1, Windows 10; Linux; Mac OS X 10.5 or later; Google Crome OS version 118 or higher

    Options and Consumables

    Consumables
    • Consumables

    TK-5372C
    Cyan Container (Yield: 5K @ ISO 19798)

    TK-5372K
    Black Container (Yield: 7K @ ISO 19798)

    TK-5372M
    Magenta Container (Yield: 5K @ ISO 19798)

    TK-5372Y
    Yellow Container (Yield: 5K @ ISO 19798)

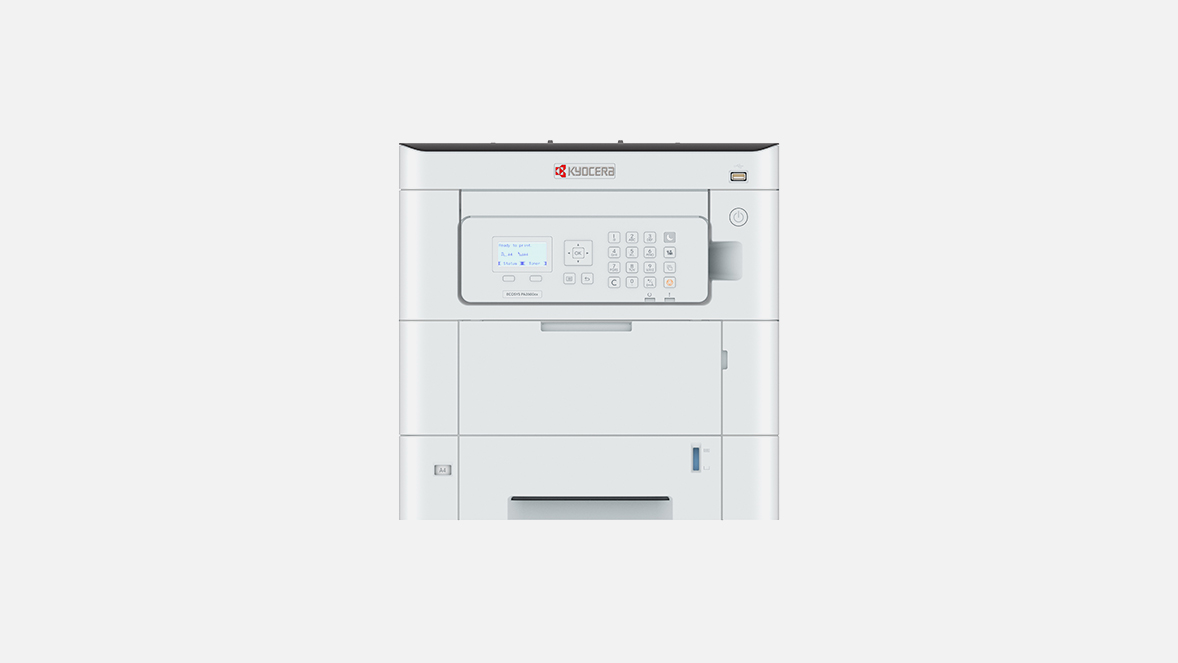

    • media-image-large-1178x663-MFP_PA3500cx_Config_front_01

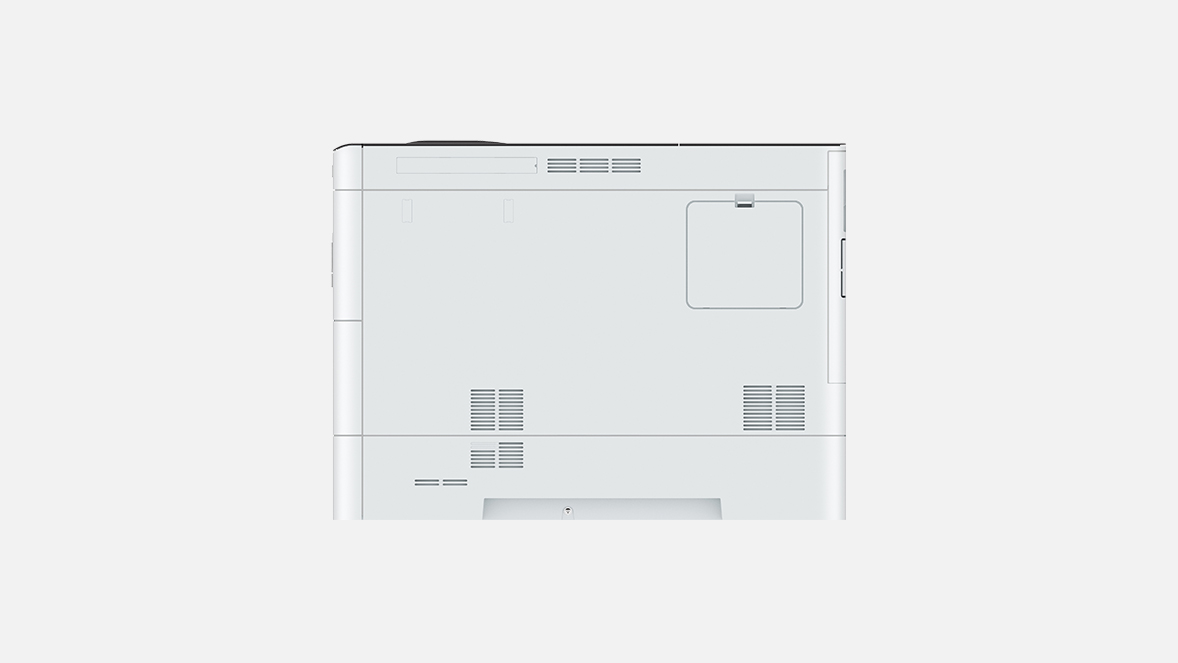

    • media-image-large-1178x663-MFP_PA3500cx_Config_side_01

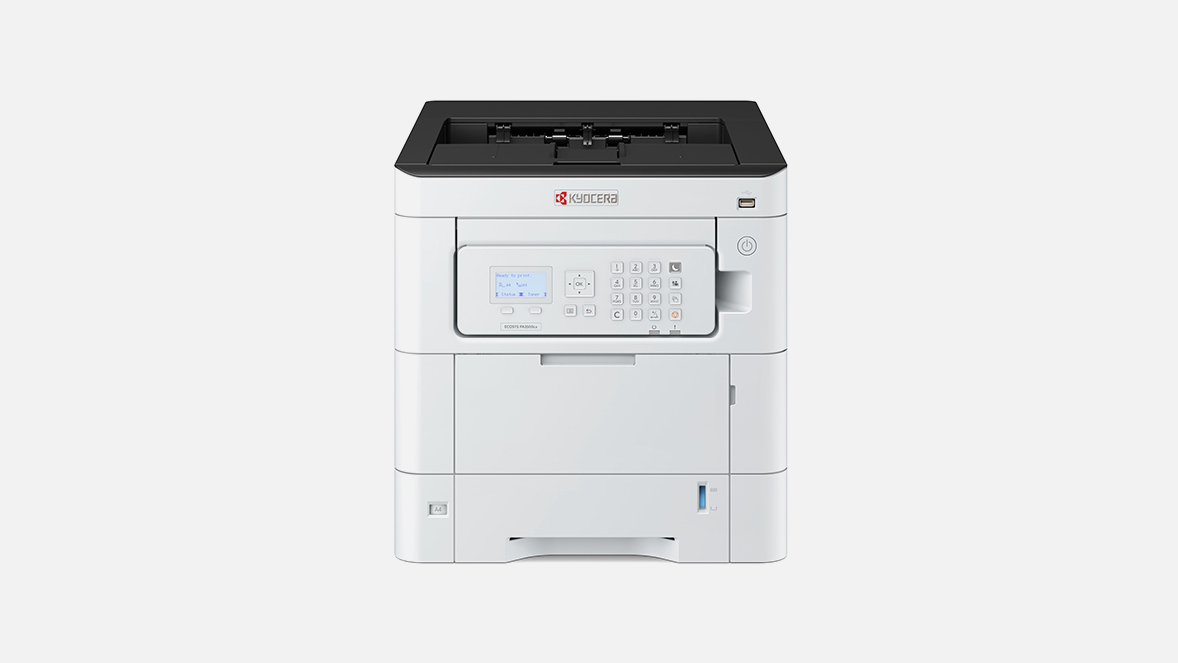

    • media-image-large-1178x663-MFP_PA3500cx_front_comb01_01

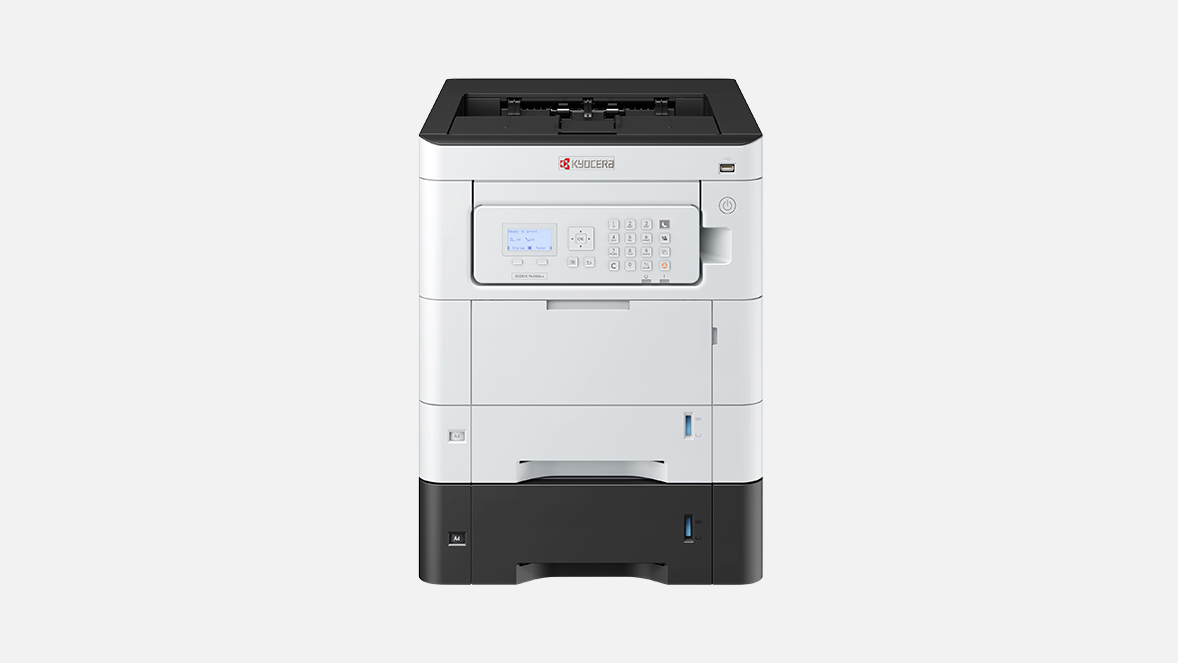

    • media-image-large-1178x663-MFP_PA3500cx_front_comb02_01

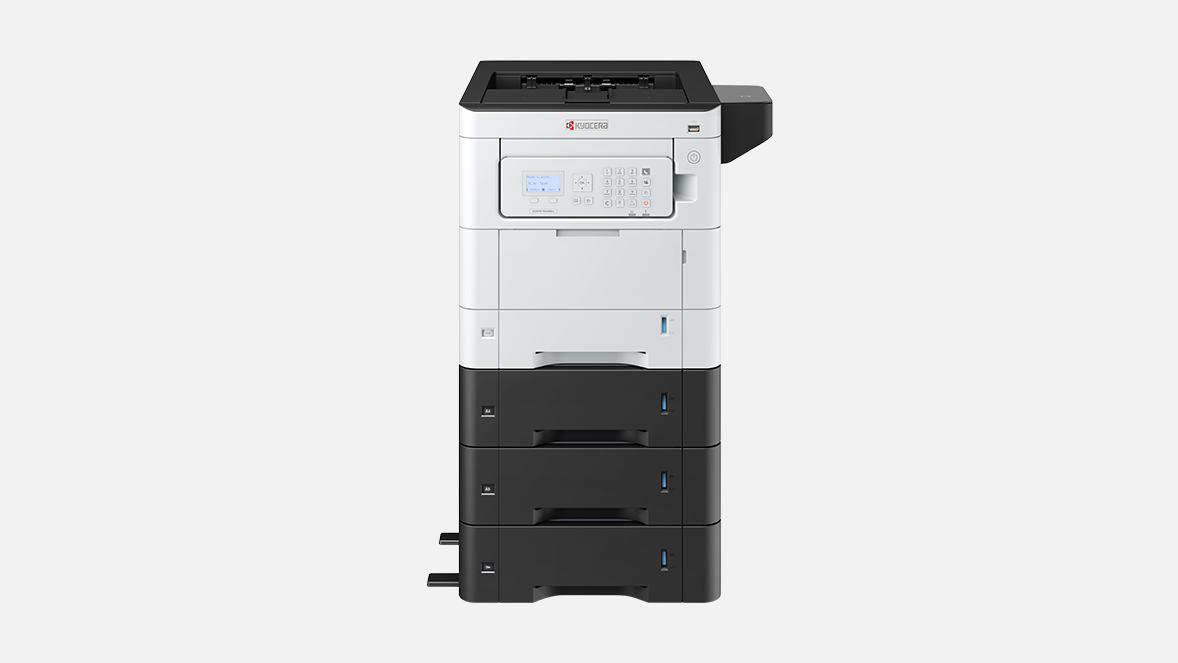

    • media-image-large-1178x663-MFP_PA3500cx_front_comb03_01

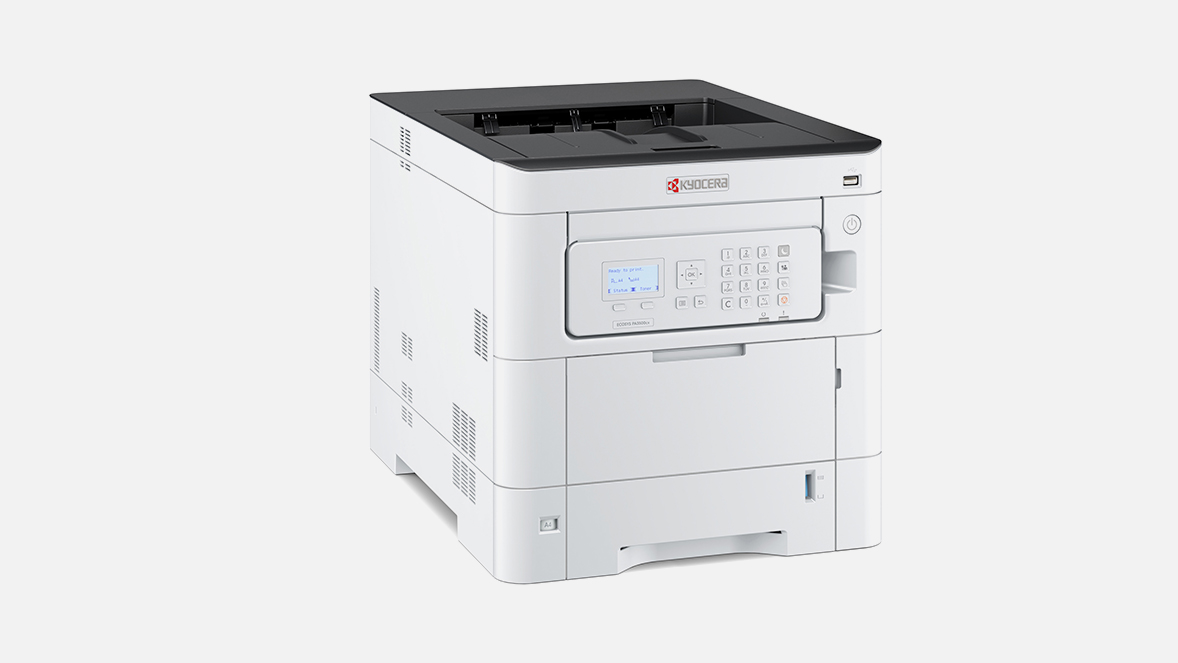

    • media-image-large-1178x663-MFP_PA3500cx_left_comb01_01

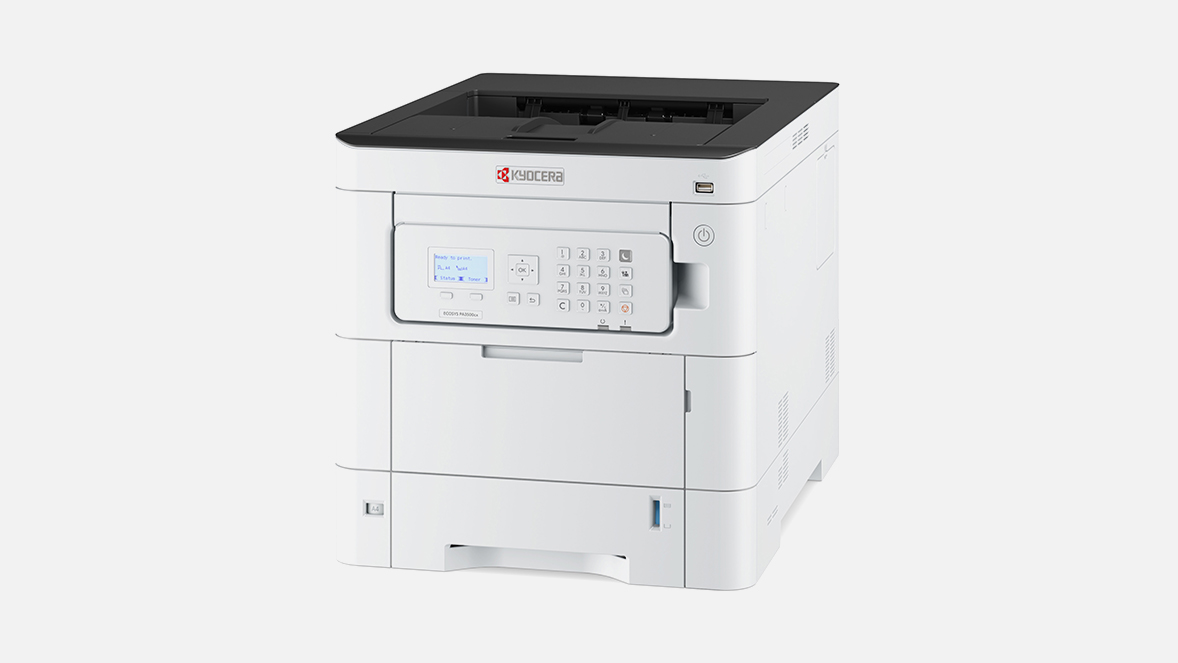

    • media-image-large-1178x663-MFP_PA3500cx_right_comb01_01

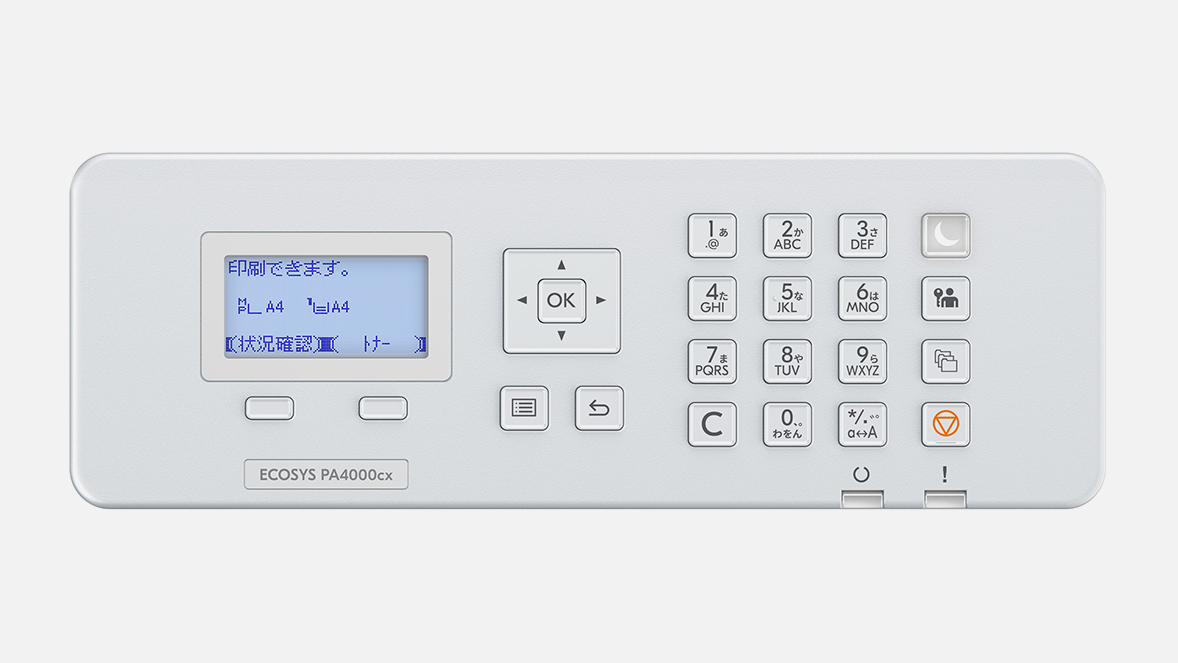

    • media-image-large-1178x663-MFP_PA3500cx-Series_panel_jpn_01

    Find the perfect match

    The Kyocera Configurator helps you find the right set-up for the device you’re interested in. Select available add-ons to suit your specific needs.
    Configure your product Configure your product
